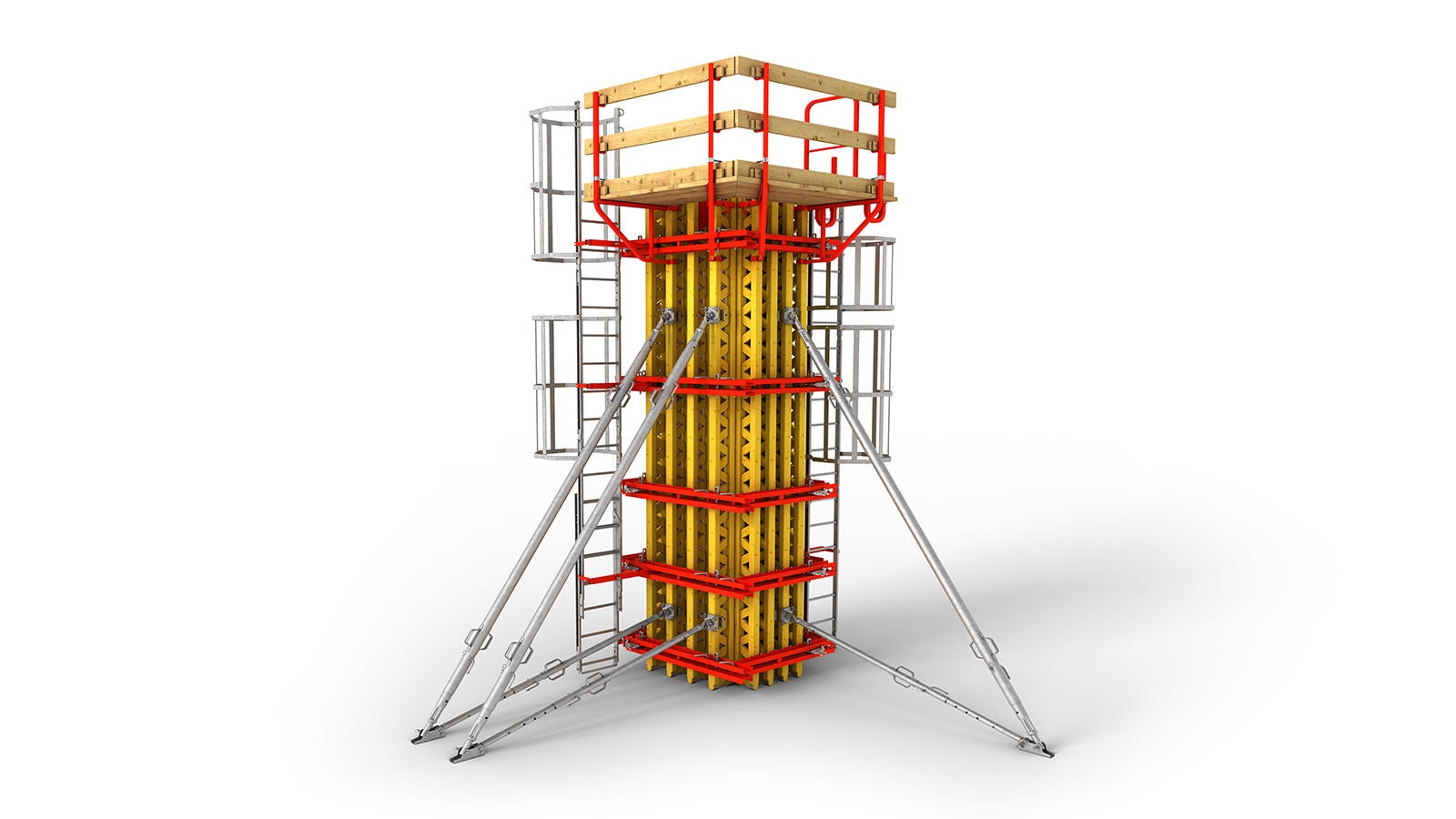

VARIO GT 24 Column Formwork in action
-

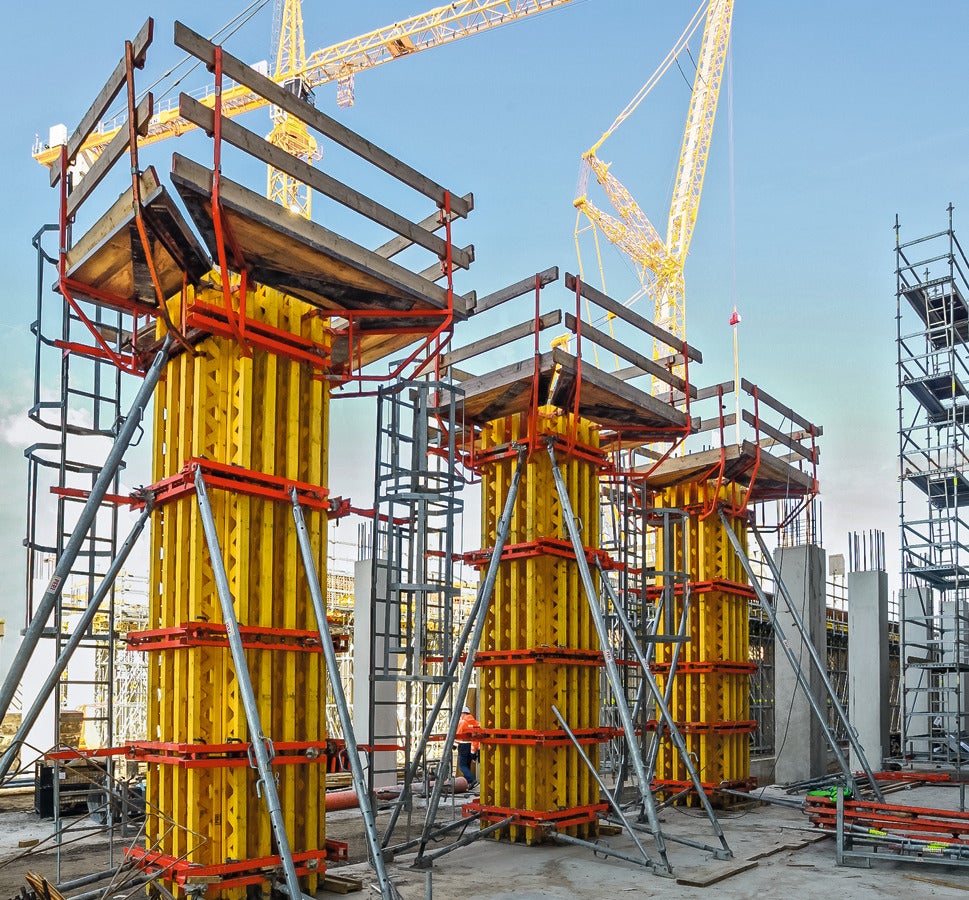

Continuously adaptable
to match rectangular and square column cross-sections of all sizes.
-

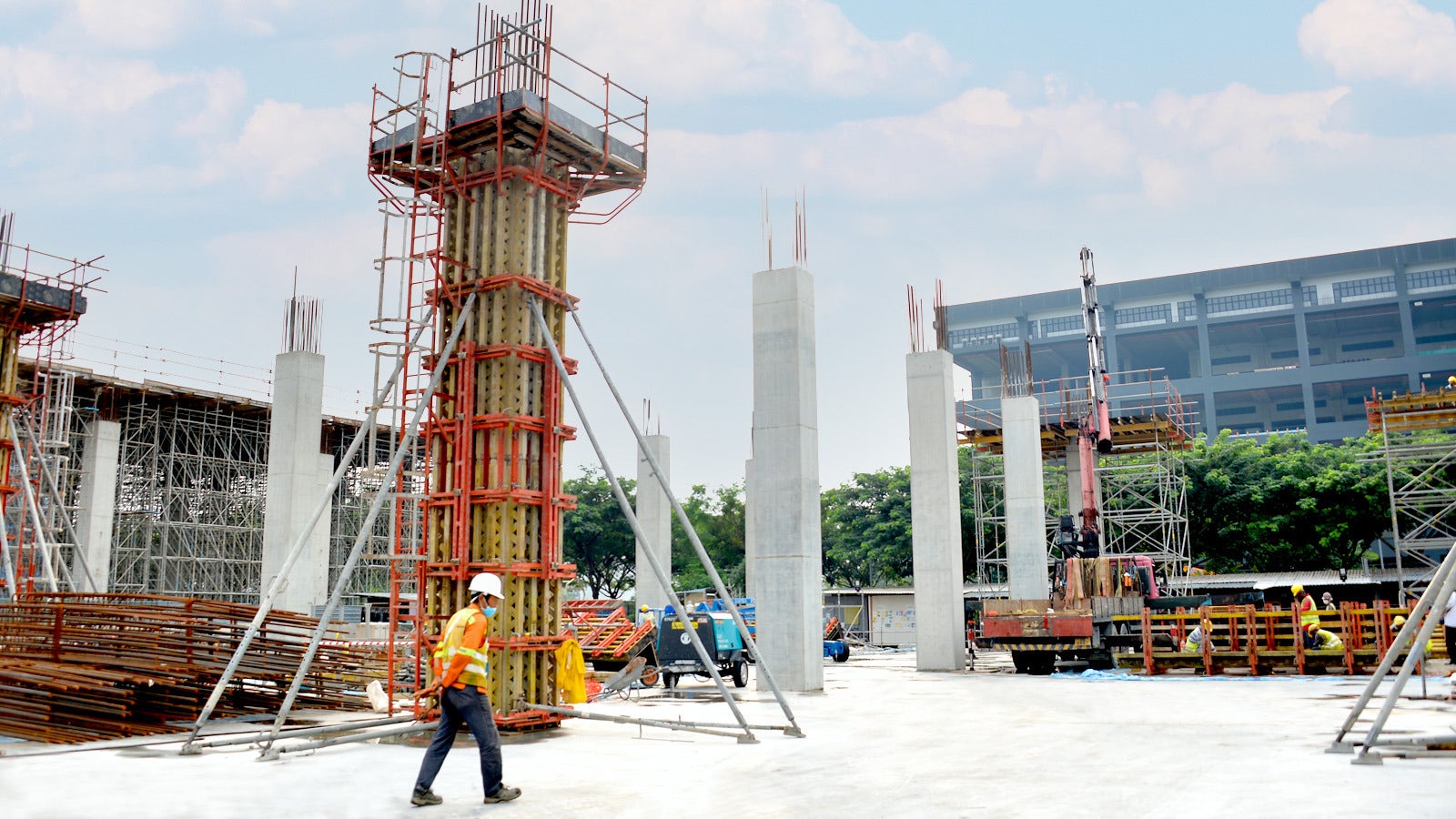

For architectural concrete surfaces
through project-specific constructions with any type of formlining.
-

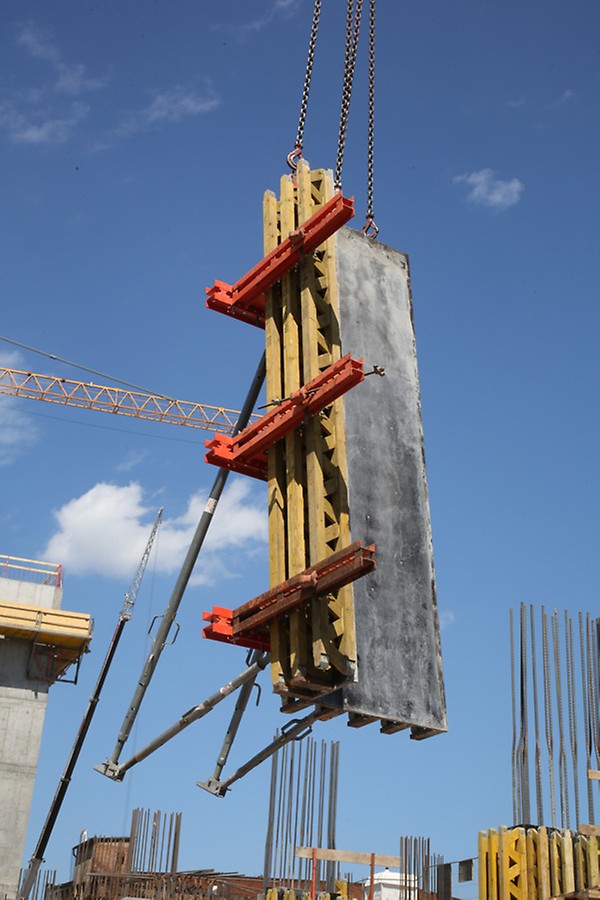

For high concrete pressures
through individual arrangements of formwork girders and steel walers.
Product Data Sheet
System type
Column Formwork
Dimensions
Maximum element dimension: from 20 x 20 cm to 80 x 120 cm, in a 30 cm height grid,
Element heights: Freely selectable,
Realizable column cross sections: Rectangular, square, conical
Fresh concrete pressure
100kN/m²
Material
Wood and steel
Tie technology
DW 15 anchor technology for the guying on the outside corner
